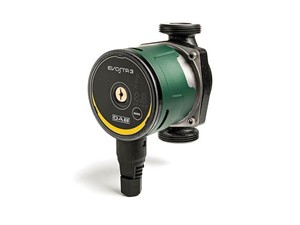

DAB Evosta 3 60/130 Circulating Heating Pump


DAB Evosta 3 60/130 Circulating Heating Pump
DAB Evosta 3 60/130 Circulating Heating Pump
The new range of EVOSTA 3 circulator pumps by DAB combines the strength of a mechanical circulator with the benefits of the electronic circulator. Thanks to the permanent magnet synchronous motor, the frequency converter and the energy efficiency of EEI  0.19, as well as the protection class IPX5 and the integrated bleeding plug, the EVOSTA 3 heating pump family ranks as one of the best products in the category in terms of performance and reliability. The range of EVOSTA 3 circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. This circulation pump is also extremely user-friendly, with a single button for sequential setting and direct access to the motor shaft for unlocking it when necessary.



DAB Evosta 3 60/130 Circulating Heating Pump

  • Heating Circulator pump
  • Brand: DAB
  • Operating range: Covers 4, 5 and 6m head pumps in one model
  • Pumped liquid temperature range: -10 to +110deg Celsius
  • Working pressure: 10 bar (1000 kPa)
  • Protection against water damage: Class IPX5
  • Insulation class: F
  • Installation: with horizontal motor axis
  • Standard power input:single-phase 1x230 V~50/60 Hz
  • Pumped liquid: Clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water (glycol max 30%)
  • 5 Year warranty
  • DAB

  • 60193271

No documents available.
