Catnic CG90 Cavity Wall Lintel - 2850mm

11286

Catnic CG90 Cavity Wall Lintel - 2850mmCatnic CG90 Cavity Wall Lintel - 2850mmCatnic CG90 Cavity Wall Lintel - 2850mmCatnic CG90 Cavity Wall Lintel - 2850mm
Catnic CG90 Cavity Wall Lintel - 2850mm
Catnic CG90 Cavity Wall Lintel - 2850mm
Catnic CG90 Cavity Wall Lintel - 2850mm

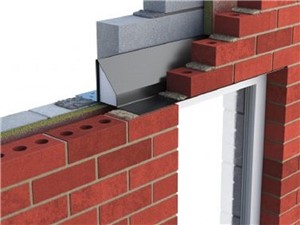

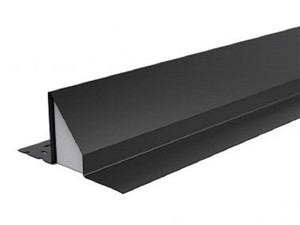

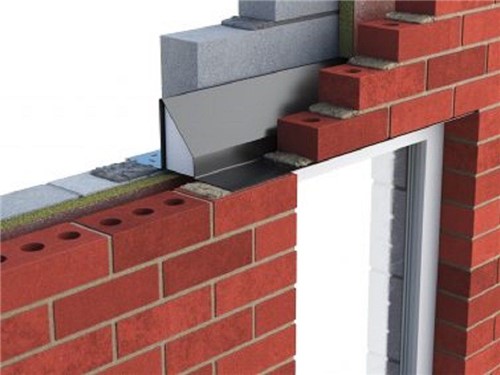

Catnic CG90/100 Cavity Wall Lintels are open back lintels. They allow masonry to be built up continuously on both outer and inner leaf. The CG range of Catnic Lintels are formed from galvanised steel, then powder coated. Duplex corrosion protection ensures optimum durability and longevity. With a Built in DPC on the 1650 - 3600mm length lintels, this saves time in construction and means cavity is easy to clean without risk of damage to DPC. This lintel features continuous insulation meaning it maximises thermal efficiency and minimises cold bridging.

£256.67

Each

Catnic CG90 Cavity Wall Lintel - 2850mm

  • Length - 2850mm
  • Suitable for Standard Duty loading applications

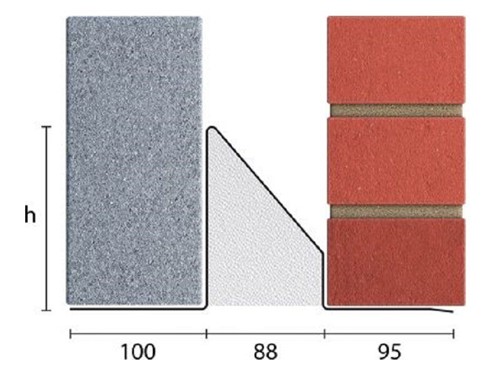

  • For Interior 90-105mm Cavity Walls
  • 100-115mm Inner Leaf Lintel
  • Nominal Height of 220mm
  • Safe Working Load: 26kN
  • Built-in Plaster Key
  • Built in DPC on 1650 - 3600mm length lintels
  • Cougar open back
  • Duplex Corrosion Protection
  • Catnic

  • CG90/1002850
